SEN6x environmental sensor node
Start testing the SEN6x environmental sensor node with the evaluation kit
Includes SEN6x variant (depending on selected evaluation kit), adapter cable and jumper wire set. Requires SEK-SensorBridge.
Product catalogueKey facts
Product type Air quality sensing platform | Measures RH/T, PM (1, 2.5, 4, 10) VOC, NOx, CO2 or HCHO | Feature On-board algorithms |
Start prototyping
Find everything you need here.
Experience the future of air quality sensing with the compact and powerful SEN6x. It combines multiple sensors in a never-before-seen form factor and can measure up to nine environmental parameters (PM1, PM2.5, PM4, PM10, T, RH, VOC Index, NOx Index, CO2 or HCHO). The innovative design simplifies integration, reduces costs, and allows for customization. At the core of the SEN6x is a brand-new, miniaturized, MEMS-based particulate matter sensing component – the SPS6x.
Applications requiring compliance with IAQ standards – such as RESET®, WELL Building Standard™ and California Title 24 Building Energy Efficiency Standards – are well served by the SEN6x.
Getting started with Arduino
Getting started with Raspberry Pi
| SEN6x embedded sample driver | Generic driver that can be ported to new microcontrollers with little effort |
| SEN6x Arduino driver | C++ Arduino library to work with SEN6x environmental sensor module via I2C |
| SEN6x Raspberry Pi driver | C Raspberry library to work with SEN6x environmental sensor module via I2C |
| SEN6x Python driver | Python Driver to work with SEN6x via I2C |
Evaluate without writing code
In just three simple steps, you will be collecting valuable data without needing any coding or soldering skills.
How it works
- Order a SEK-SensorBridge and a SEK-SEN66-Evaluation kit SEN60, SEN65, SEN66 via our distribution network
- Download the SEK-ControlCenter viewer software
- Connect the SEN6x to your computer by using a SEK-SensorBridge and start measuring

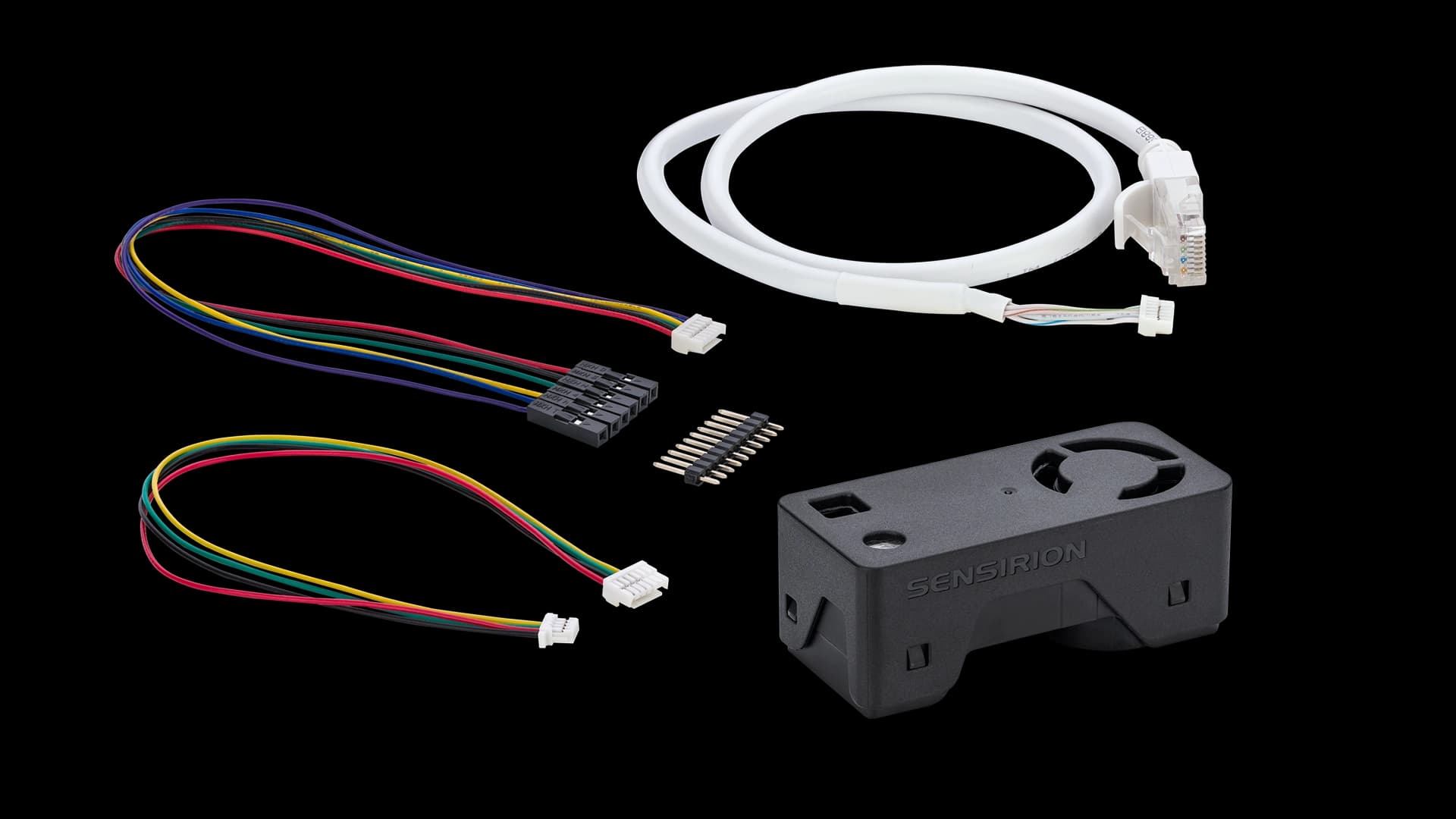

Find out what the evaluation kit holds
SEN6x environmental sensor node
- I2C interface
- VDD range: 3.15 to 3.45 V
- Peak current @ 3.3 V: 350 mA
Adapter cable to connect the SEN6x to SensorBridge
Jumper wire set to connect the SEN6x to embedded platform
Qwiic cable to connect to common development boards
Cable configuration:
- Red = VDD supply voltage
- Black = GND ground
- Green = SDA serial data input/output
- Yellow = SCL serial clock input
- Blue = GND ground (internally connected to pin 2)
- Violet = VDD supply voltage (internally connected to pin 1)
Temperature Compensation & Acceleration with STAR-Engine
Discover how to unlock the full performance of the SEN6x sensing platform using the built-in STAR temperature compensation and acceleration engine.
