SEK-SGP4x-Sensor evaluation kit

For the SGP41 and SGP40 VOC/NOx sensors

Start testing the SGP4x gas sensor with the SEK-SGP4x-Sensor evaluation kit

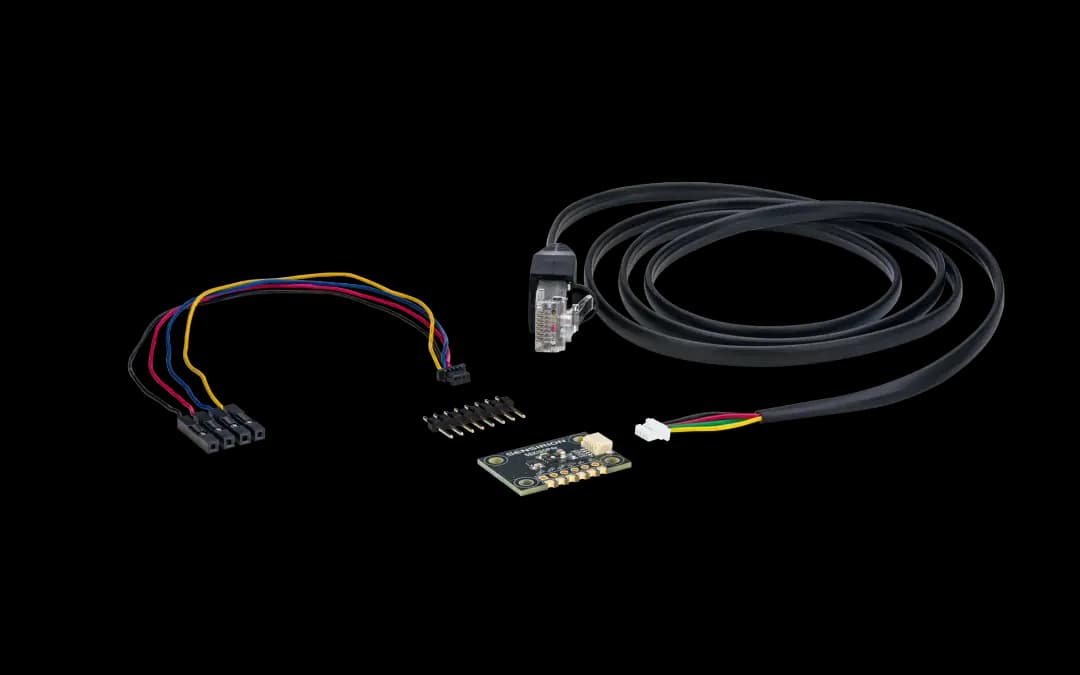

Includes SGP4x development board (featuring SGP4x and SHT41), Qwiic to RJ45 adapter cable and jumper wire set.

Get the SEK-SGP4x now

Key facts

Product type

VOC and NOx sensor

Measures

VOC and NO_xraw values

Feature

Raw data for evaluation and testing of sensing algorithms

Start prototyping

Find everything you need here

The SEK-SGP4x-Sensor evaluation kit is designed for engineers and developers to quickly prototype and integrate Sensirion’s VOC and NOx gas sensors into their applications. It supports both SGP40 and SGP41 sensor operation modes and includes a combined humidity and temperature sensor SHT41. Unlike the SEK-SVM4x evaluation kit, this breakout board has no onboard microcontroller and outputs only raw sensor values (SRAW). To obtain VOC and NOx Index or other processed signals, the SEK-SGP4x board can be connected to PC using Sensirion’s SEK-SensorBridge and read out with the SEK-ControlCenter software.

SGP40 embedded driver	Generic driver that can be ported to new microcontrollers with little effort
SGP40 Arduino driver	C++ Arduino library to work with SGP40 gas sensor via I²C
SGP40 Raspberry Pi driver	C Raspberry library to work with SGP40 gas sensor via I²C
SGP40 Python driver	Python Driver to work with SGP40 gas sensor via I²C
Code samples Arduino	Standalone Arduino solutions demonstrating the communication with the sensor
VOC index algorithm	Provides an index output signal calculated from SGP40 raw signals
VOC index algorithm library for Arduino	Arduino Library providing an index output signal calculated from SGP40 raw signals

SGP41 embedded driver	Generic driver that can be ported to new microcontrollers with little effort
SGP41 Arduino driver	C++ Arduino library to work with SGP41 gas sensor via I²C
SGP41 Raspberry Pi driver	C Raspberry library to work with SGP41 gas sensor via I²C
SGP41 Python driver	Python Driver to work with SGP41 gas sensor via I²C
Code samples Arduino	Standalone Arduino solutions demonstrating the communication with the sensor
VOC index algorithm	Provides an index output signal calculated from SGP41 raw signals
VOC index algorithm library for Arduino	Arduino Library providing an index output signal calculated from SGP41 raw signals

SGP40 and SGP41 gas sensors
Datasheet SGP40
Datasheet SGP41
Datasheet SHT4x
SGP4x STEP file
SGP4x altium footprint
Handling and assembly instructions
Design-in guide
Quick testing guide SGP40
Quick testing guide SGP41

Evaluate without writing code

In just few simple steps, you will be collecting valuable data without needing any coding or soldering skills.

Step 1:

Order a SEK-SensorBridge via our distribution network.

Step 2:

Download the SEK-ControlCenter viewer software (available for Windows, Linux and MacOS).

Step 3:

Connect the SGP4x development board to your computer by using a SEK-SenoBridge and start measuring.

Find out what the evaluation kit holds

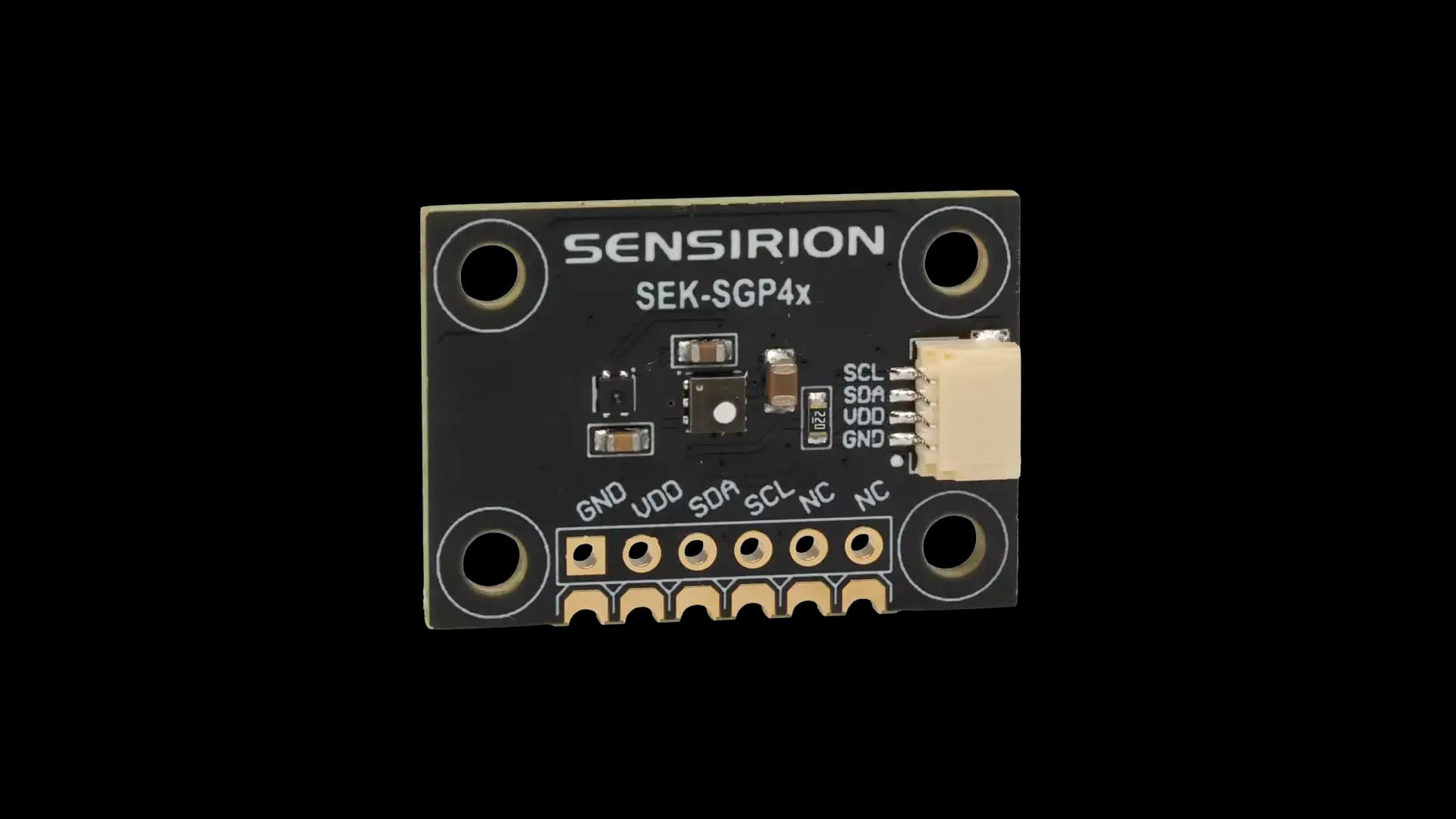

SGP4x development board

SGP4x VOC+NOx sensor and SHT41 humidity and temperature sensor
I2C interface
Supply voltage VDD: 1.8 - 3.3 V
Size: 27 x 19 x 1.6 mm3

Adapter cable to connect the SGP4x development board to SEK-SensorBridge.

Jumper wire set (4-pin Qwiic cable female) to connect the SGP4x development board to embedded platforms like Arduino, Raspberry Pi, etc. A 10-pin 0.1" pitch-gender changer is also provided.

Cable configuration:

Red cable = VDD

Black cable = GND

Green cable = SDA (I2C)

Yellow cable = SCL (I2C)
